Adjustable Mounting System
Adjustable solar mounting system designed to optimize rooftop PV performance with flexible tilt angle settings, stable aluminum structure, and project-based installation support.

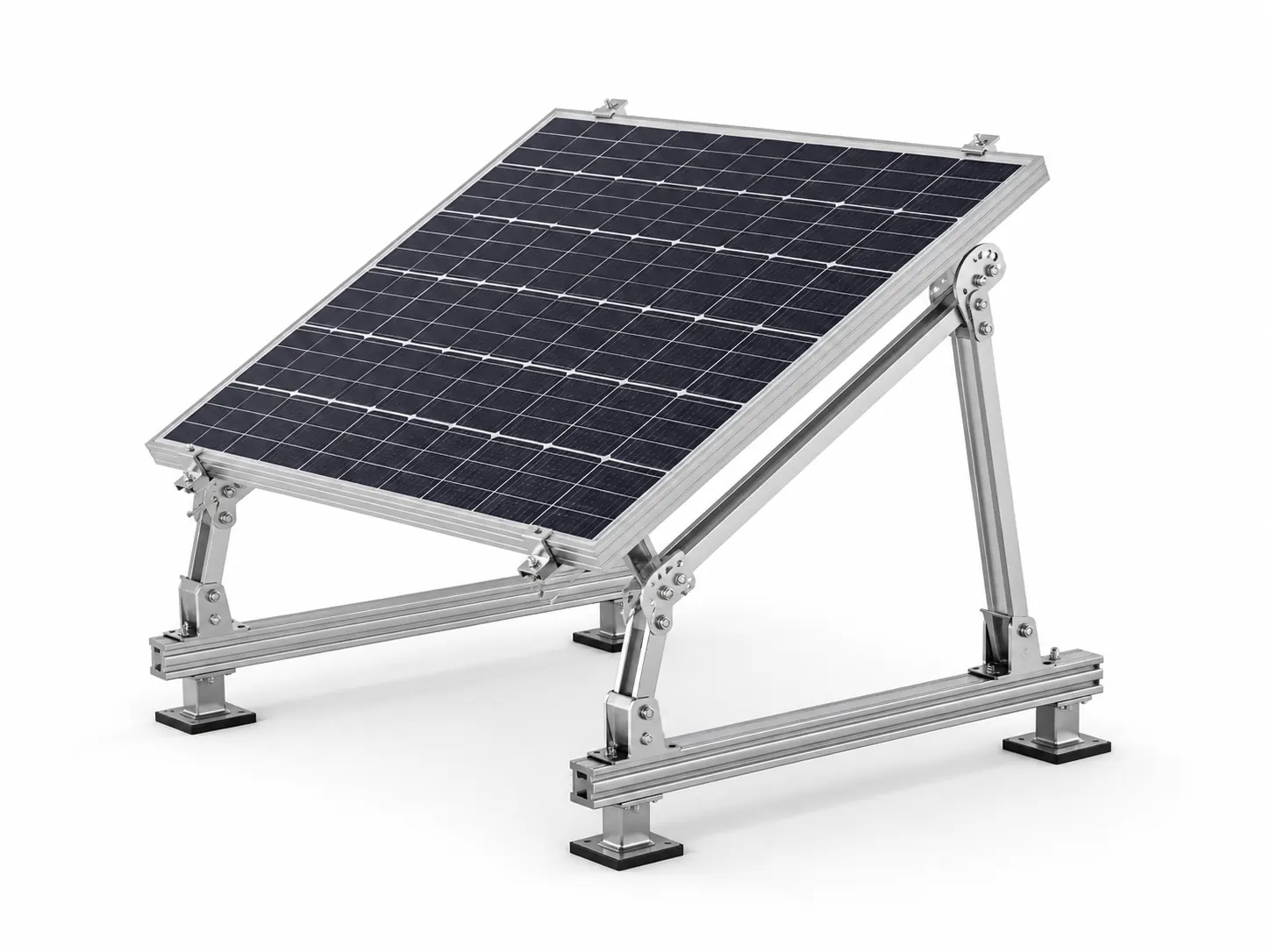

Adjustable Bracket Structure
The SolarMountX adjustable mounting system uses adjustable support brackets and aluminum rails to help set the required module tilt angle for rooftop solar projects. The structure is designed for stable support, flexible installation, and long-term outdoor performance.
Support flexible tilt angle settings for different rooftop project requirements.
Provide stable module support with lightweight and corrosion-resistant performance.
Help secure the selected tilt angle and maintain structural stability after installation.
Compatible with portrait and landscape PV module layouts for flexible rooftop design.

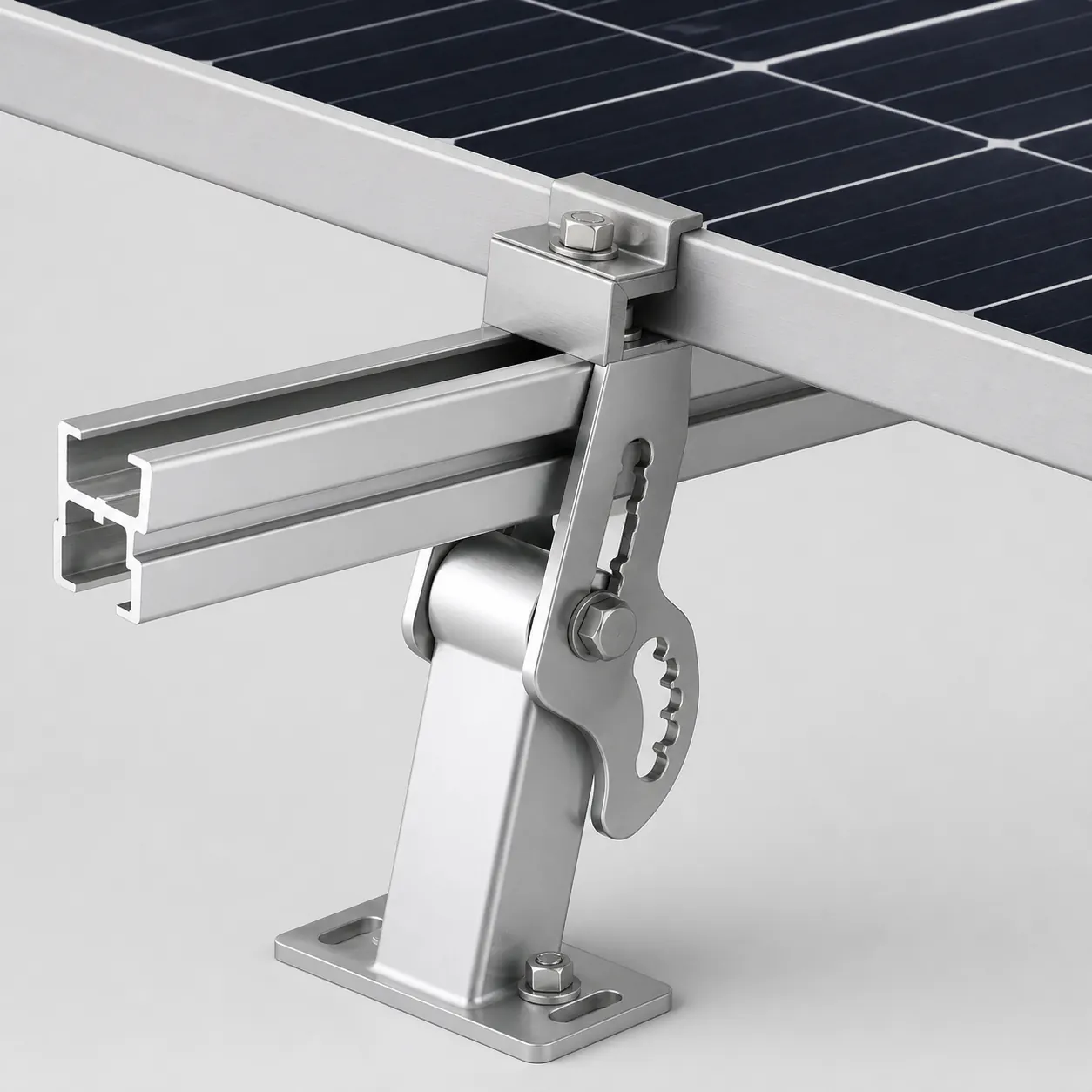

Adjustable support leg, locking fastener, rail connection, and module frame support.
Flexible Tilt Support For Rooftop Solar Projects
This adjustable mounting system is suitable for rooftop PV projects that need flexible tilt angle settings, optimized module orientation, and reliable structural support.
Best-Fit Applications
Supports project-specific tilt settings for different rooftop solar layouts.
Helps improve module orientation where fixed flat installation is not ideal.

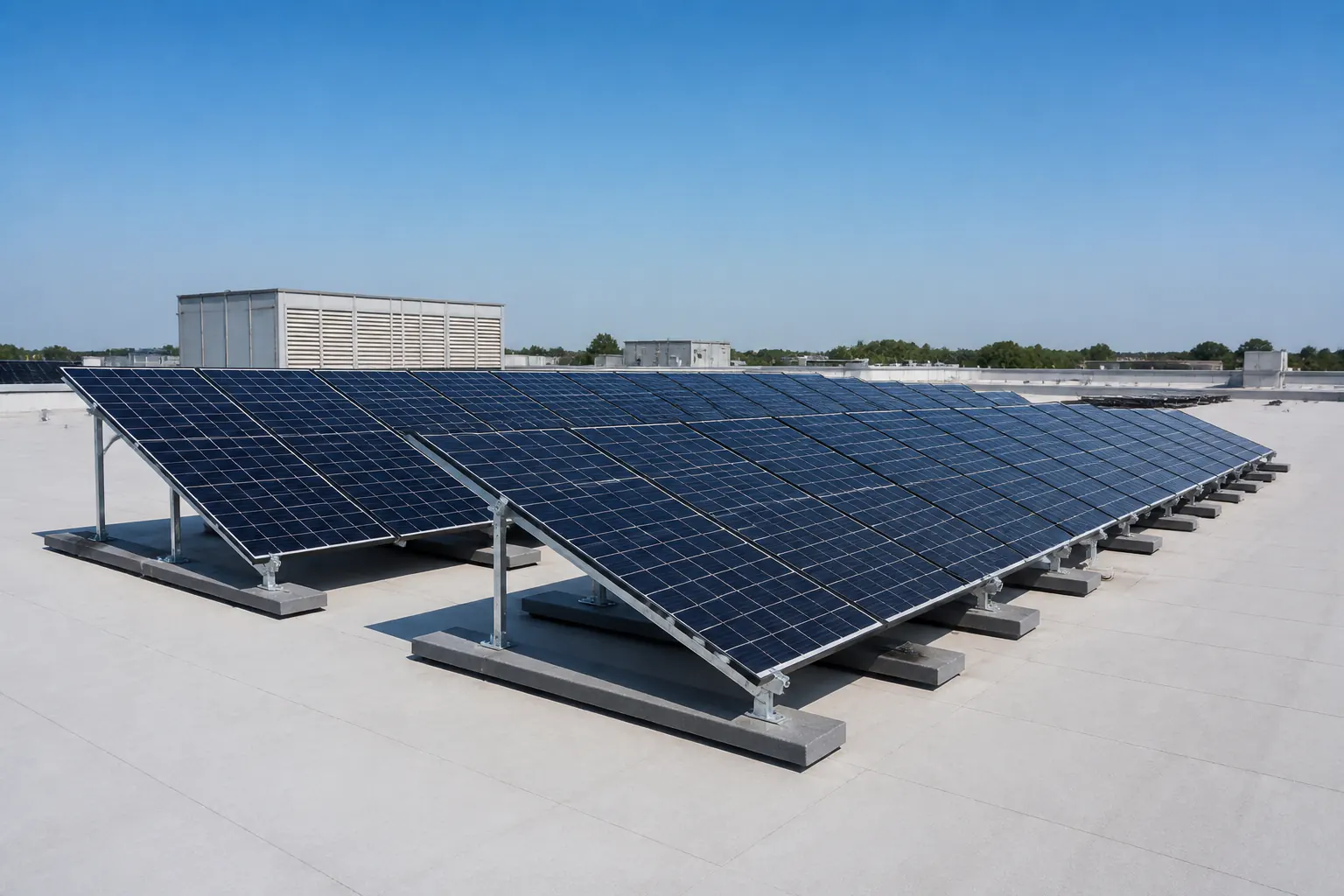

Suitable for commercial flat roofs and customized rooftop PV projects.
Designed with durable aluminum rails and secure fastening components.
Installation Process And Technical Specifications
The adjustable mounting system is designed for practical rooftop installation, with clear bracket positioning, flexible tilt angle setting, and project-specific structural requirements.

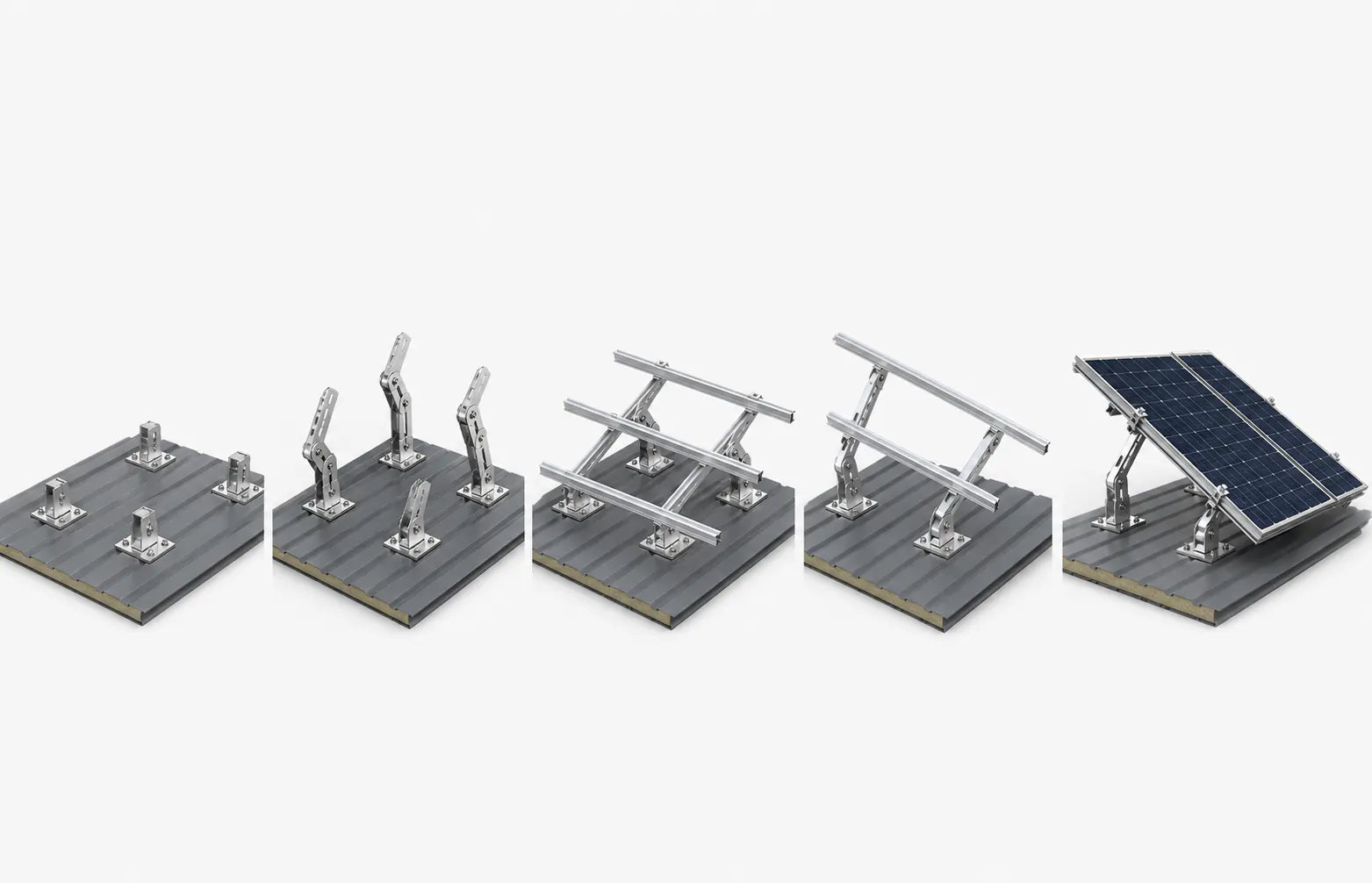

Installation Process
Confirm roof type and project layout
Mark support bracket positions
Fix base supports or mounting points
Install adjustable brackets and aluminum rails
Set the required tilt angle
Mount PV modules and lock fastening points
Technical Specifications
| Application | Adjustable rooftop solar mounting |
|---|---|
| Roof Type | Flat roof / suitable rooftop structure |
| Material | Aluminum alloy / stainless steel |
| Surface Treatment | Anodized aluminum |
| Tilt Angle | Project specific |
| Module Orientation | Portrait / landscape |
| Fastener Type | Stainless steel fasteners |
| Wind / Snow Load | Project specific |
| Customization | Available by project requirement |
Need An Adjustable Solar Mounting Solution?
Share your roof type, panel layout, tilt angle requirement, and project location with SolarMountX. Our team can help recommend a suitable adjustable mounting structure for your rooftop solar project.
Solar PV Mounting System Engineering Review
Use the information below as a procurement checklist. Final materials, attachment details, design loads, certificates and installation limits depend on the selected system, roof assembly and approved project documents.
Engineering specification checklist
| Materials | Confirm the selected aluminum, steel, stainless-steel and fastener grades in the approved bill of materials. |
|---|---|
| Design loads | Confirm local wind, snow, seismic, corrosion, thermal and other applicable criteria in the structural design. |
| Attachment and roof | Verify the roof profile, supporting members, attachment spacing, waterproofing detail and maintenance access. |
| Grounding and bonding | Use the system-specific installation documents and local electrical requirements to confirm the approved bonding path. |
| Certificates and standards | Request the current certificate, test report or code-compliance document and confirm that its scope covers the selected system. |
| Program eligibility | Where incentives or domestic-content rules matter, confirm eligibility from the selected bill of materials and current program requirements. |
Rail-based vs Rail-less Mounting Systems
| Selection factor | Rail-based | Rail-less |
|---|---|---|
| Potential fit | Useful when roof geometry, attachment positions or layout require rail adjustment. | Useful when the approved module and attachment pattern supports direct mounting. |
| Design inputs | Roof structure, rail span, attachment spacing and module layout. | Roof structure, attachment pattern and module-frame compatibility. |
| Procurement | Rails plus clamps and roof attachments. | Direct-to-attachment components plus approved clamps. |
| Final decision | Use the system-specific structural design, installation manual and local code review. | |
SolarMountX product questions
How are wind and snow values determined?
They are determined from the project location, roof assembly, layout, edge zones and applicable design criteria. Request the approved structural documents for the selected system.
Are certificates or test reports available?
Ask for the current certificate or test report and confirm the product, configuration and installation scope before relying on it for procurement or approval.
How should grounding and bonding be checked?
Use the selected system's installation documents together with local electrical requirements. Do not infer the final bonding path from a generic component description.
Ready for a project-specific mounting review?
Send the roof type, project scale, module layout and required deliverables for an EPC-oriented response.
