Trapezoidal Sheet Roof Mounting System
Lightweight solar mounting solution for trapezoidal metal sheet roofs, designed with aluminum rails, roof clamps, sealing components, and fast installation support for commercial and industrial rooftop PV projects.

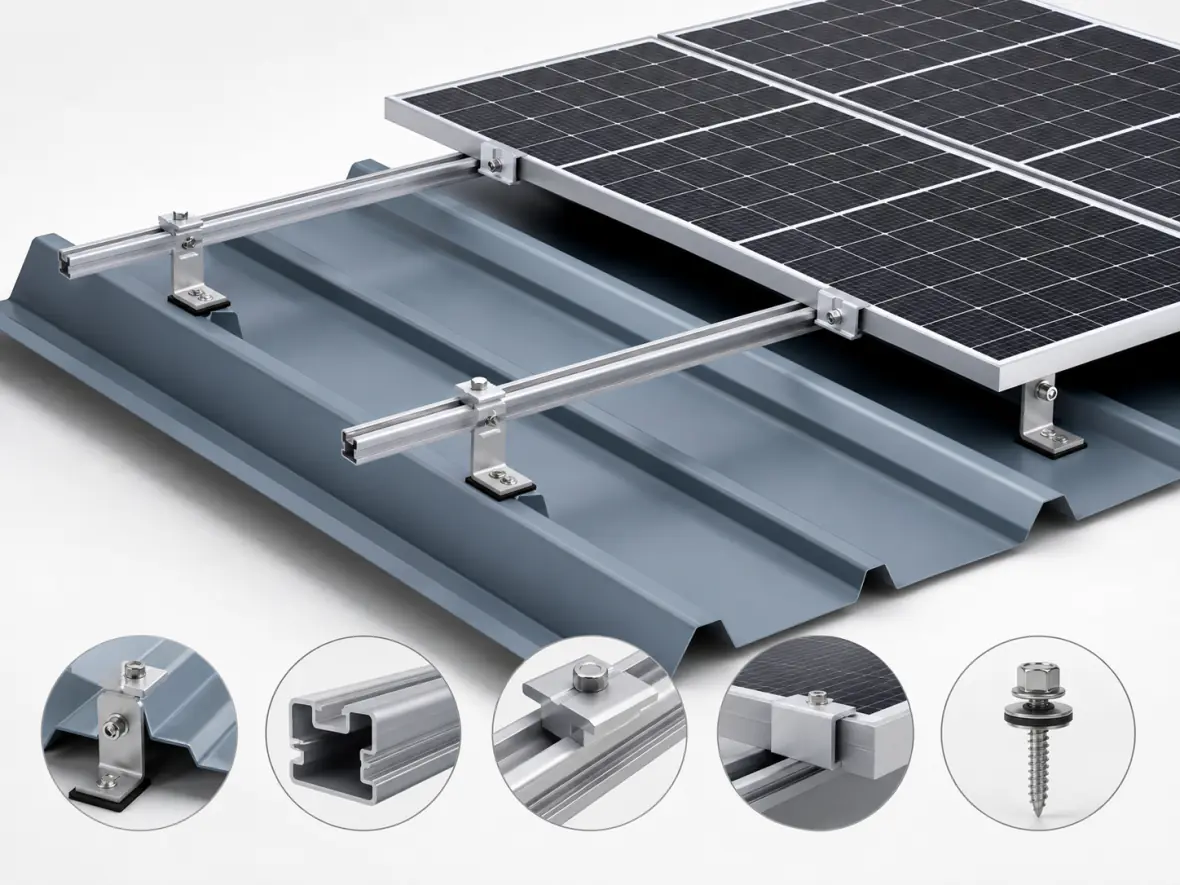

Clamp And Mini Rail Mounting System
The SolarMountX trapezoidal sheet roof mounting system uses lightweight aluminum rails, roof clamps, sealing pads, and stainless steel fasteners to support secure PV module installation on trapezoidal metal sheet roofs.

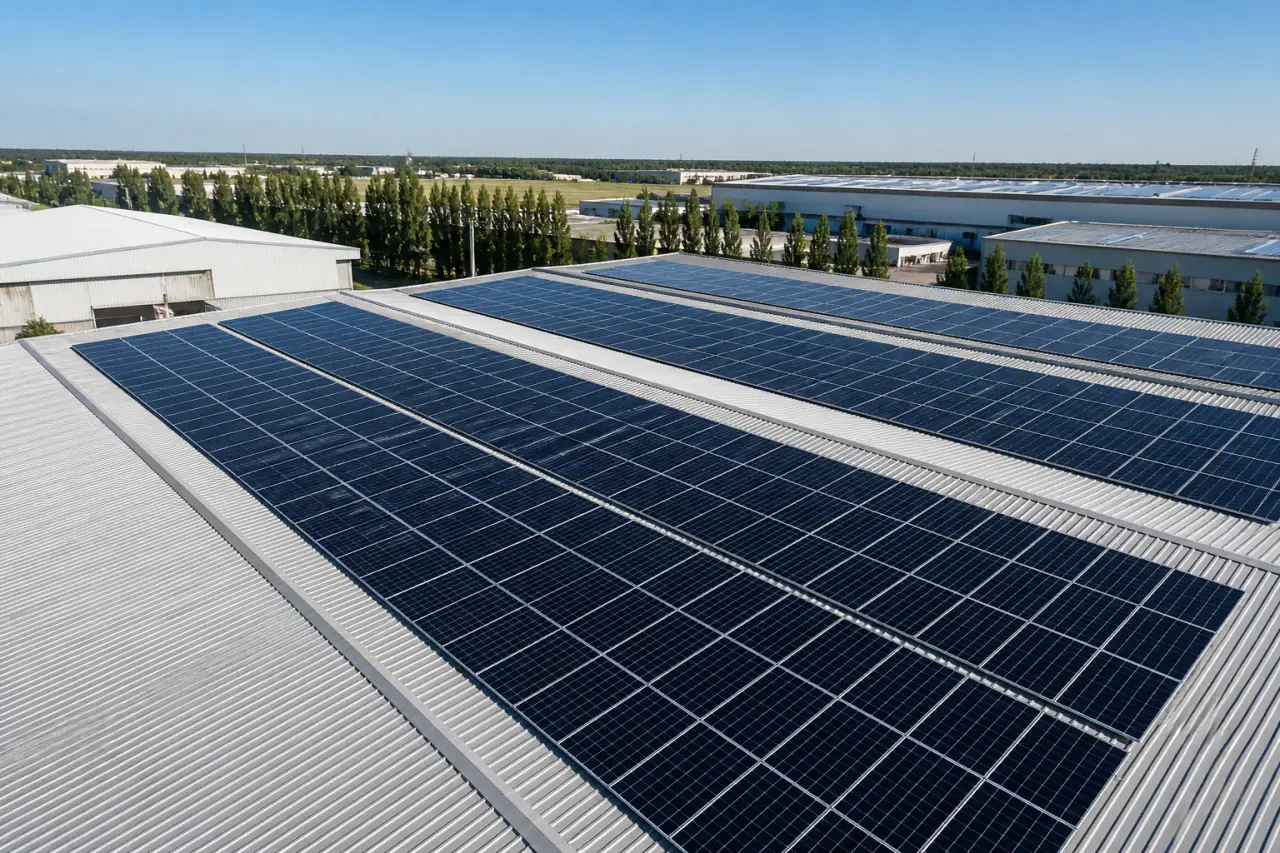

Designed For Commercial And Industrial Metal Roof Projects
This system is suitable for metal rooftop PV projects that require direct fixing, lightweight mounting components, fast installation, and reliable sealing support for trapezoidal sheet roof applications.
Suitable for warehouses, factories, and commercial rooftops with trapezoidal sheet profiles.
Designed for efficient attachment to metal roof ribs with project-specific sealing details.
Aluminum mounting components help reduce rooftop load while supporting durable outdoor use.
Mini rail and clamp options help simplify rooftop installation and project deployment.
Installation Process And Technical Specifications
Review the basic installation flow and key project parameters for trapezoidal sheet roof solar mounting applications.

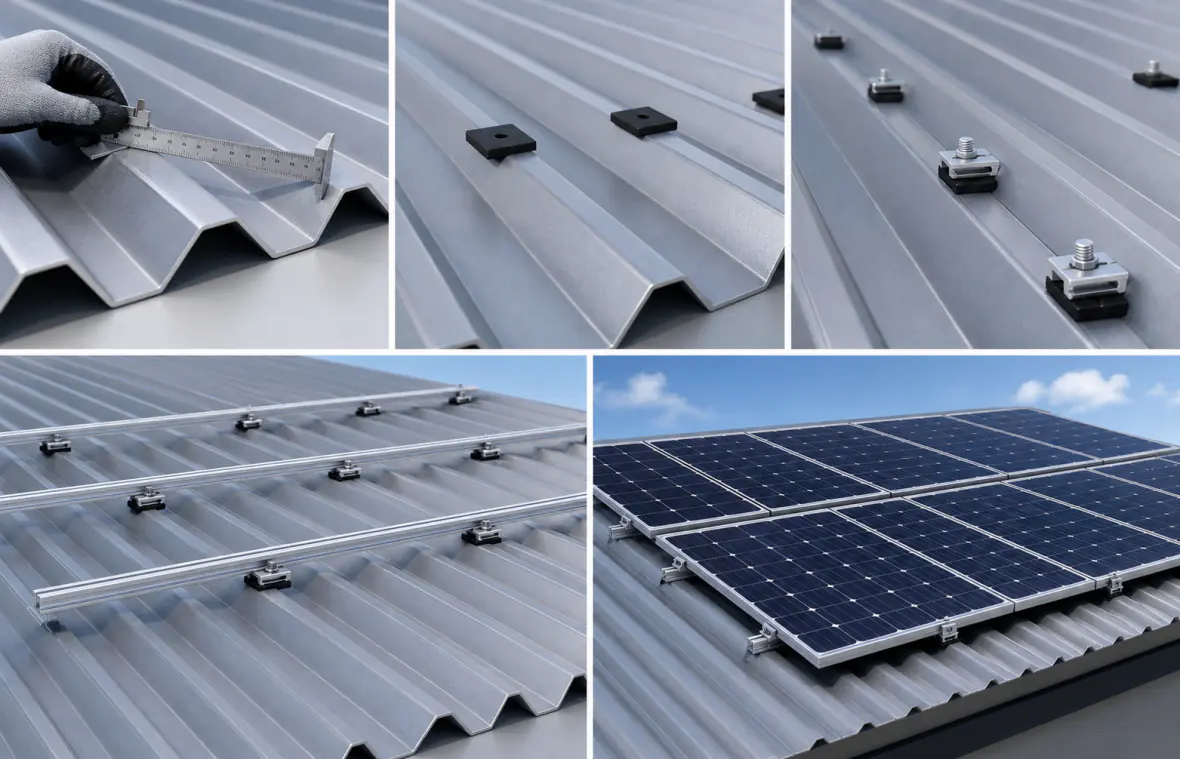

Installation Process
- Confirm trapezoidal sheet profile and roof condition
- Mark fixing positions according to module layout
- Install mini rails or roof clamps with sealing pads
- Fix aluminum rails if required
- Mount PV modules with mid and end clamps
- Check fastening points and sealing details
Technical Specifications
Related Roof Mounting Systems
Explore more SolarMountX roof mounting solutions for different rooftop structures and PV project requirements.

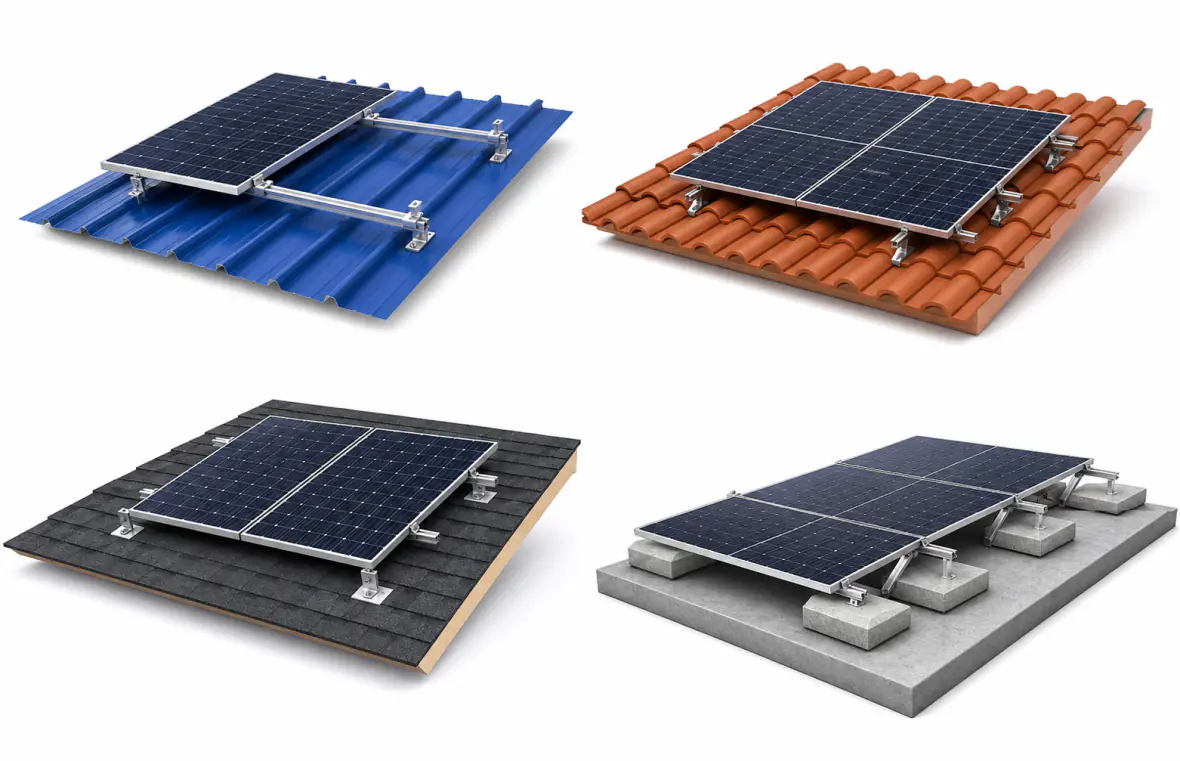

Solar Roof Mounting Systems
View the full SolarMountX rooftop mounting system range for pitched, metal, and flat roof applications.

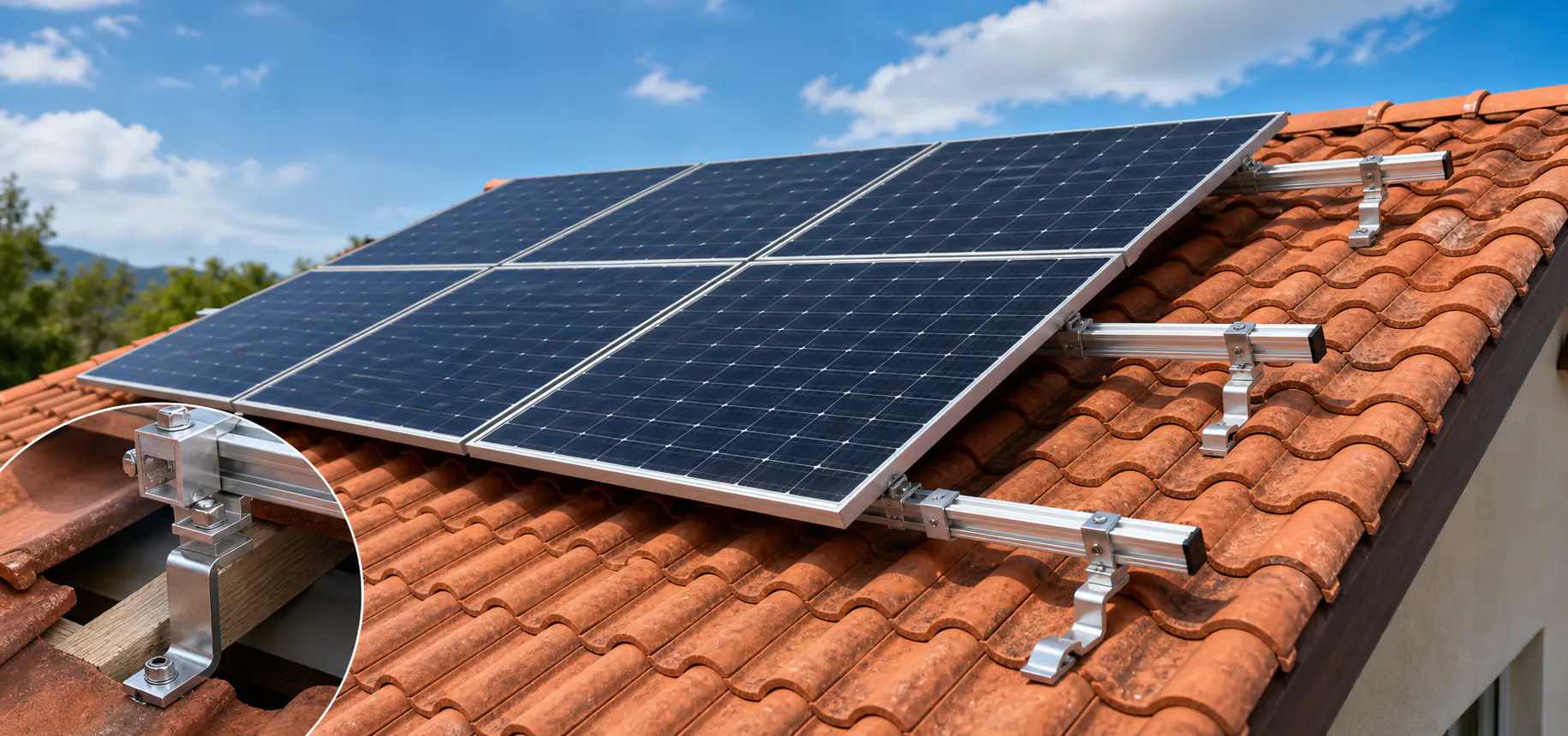

Tile Roof Mounting System
Solar mounting solution for clay tile and concrete tile rooftops with reliable roof hook attachment.

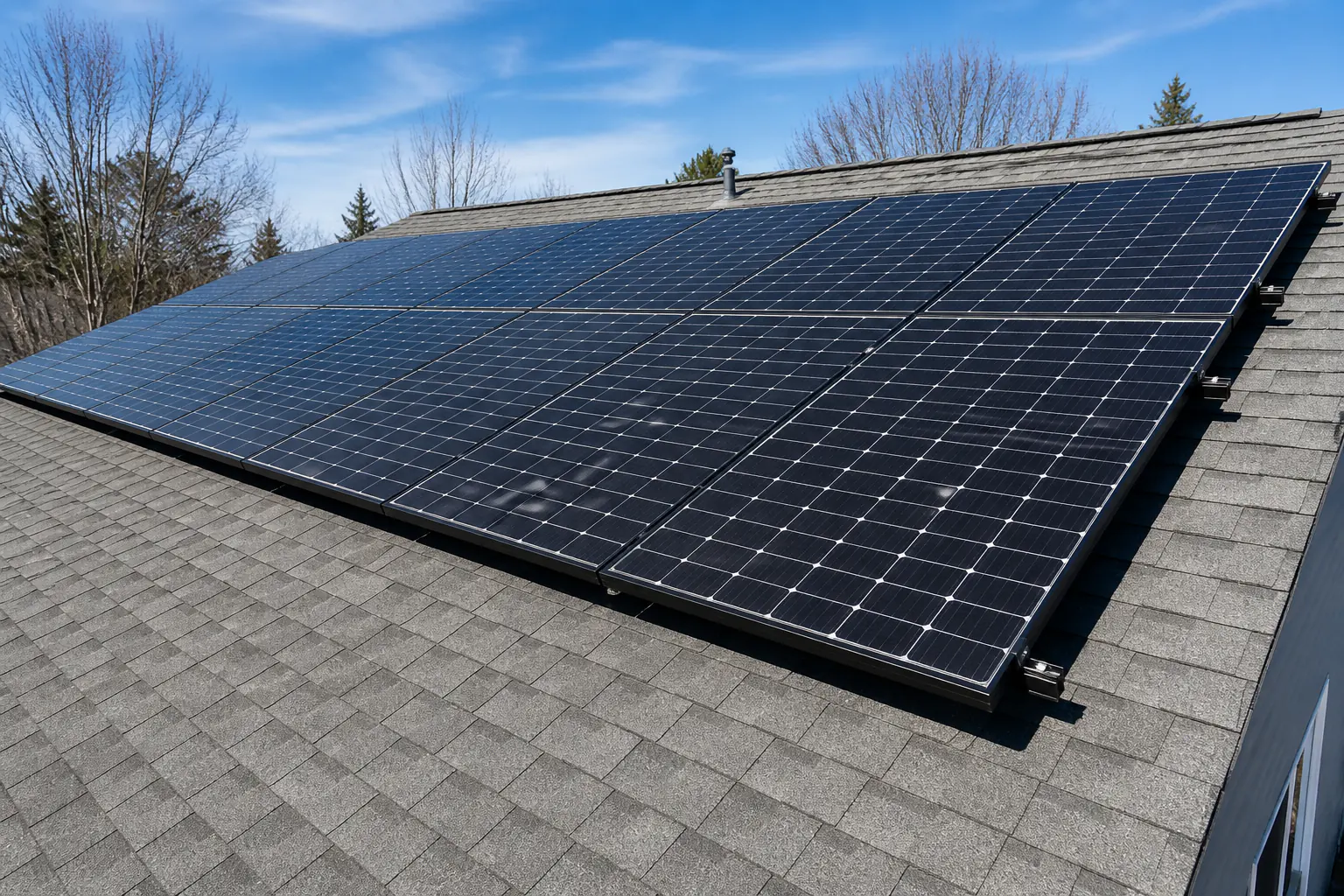

Asphalt Shingle Roof Mounting System
Flashing-based solar mounting solution for asphalt shingle roof PV installations.
Need A Trapezoidal Sheet Roof Mounting Solution?
Share your roof profile, module size, project location, and load requirements with SolarMountX. Our team can help review the mounting solution and prepare a project-based quotation.
Solar PV Mounting System Engineering Review
Use the information below as a procurement checklist. Final materials, attachment details, design loads, certificates and installation limits depend on the selected system, roof assembly and approved project documents.
Engineering specification checklist
| Materials | Confirm the selected aluminum, steel, stainless-steel and fastener grades in the approved bill of materials. |
|---|---|
| Design loads | Confirm local wind, snow, seismic, corrosion, thermal and other applicable criteria in the structural design. |
| Attachment and roof | Verify the roof profile, supporting members, attachment spacing, waterproofing detail and maintenance access. |
| Grounding and bonding | Use the system-specific installation documents and local electrical requirements to confirm the approved bonding path. |
| Certificates and standards | Request the current certificate, test report or code-compliance document and confirm that its scope covers the selected system. |
| Program eligibility | Where incentives or domestic-content rules matter, confirm eligibility from the selected bill of materials and current program requirements. |
Rail-based vs Rail-less Mounting Systems
| Selection factor | Rail-based | Rail-less |
|---|---|---|
| Potential fit | Useful when roof geometry, attachment positions or layout require rail adjustment. | Useful when the approved module and attachment pattern supports direct mounting. |
| Design inputs | Roof structure, rail span, attachment spacing and module layout. | Roof structure, attachment pattern and module-frame compatibility. |
| Procurement | Rails plus clamps and roof attachments. | Direct-to-attachment components plus approved clamps. |
| Final decision | Use the system-specific structural design, installation manual and local code review. | |
SolarMountX product questions
How are wind and snow values determined?
They are determined from the project location, roof assembly, layout, edge zones and applicable design criteria. Request the approved structural documents for the selected system.
Are certificates or test reports available?
Ask for the current certificate or test report and confirm the product, configuration and installation scope before relying on it for procurement or approval.
How should grounding and bonding be checked?
Use the selected system's installation documents together with local electrical requirements. Do not infer the final bonding path from a generic component description.
Ready for a project-specific mounting review?
Send the roof type, project scale, module layout and required deliverables for an EPC-oriented response.
