CONCRETE FOUNDATION SOLAR MOUNTING SOLUTION
Concrete Foundation Mounting System
A ground PV mounting solution designed for projects that require concrete piers, anchor-bolt connections, strong foundation stability, and project-based structural coordination.
SOLUTION OVERVIEW

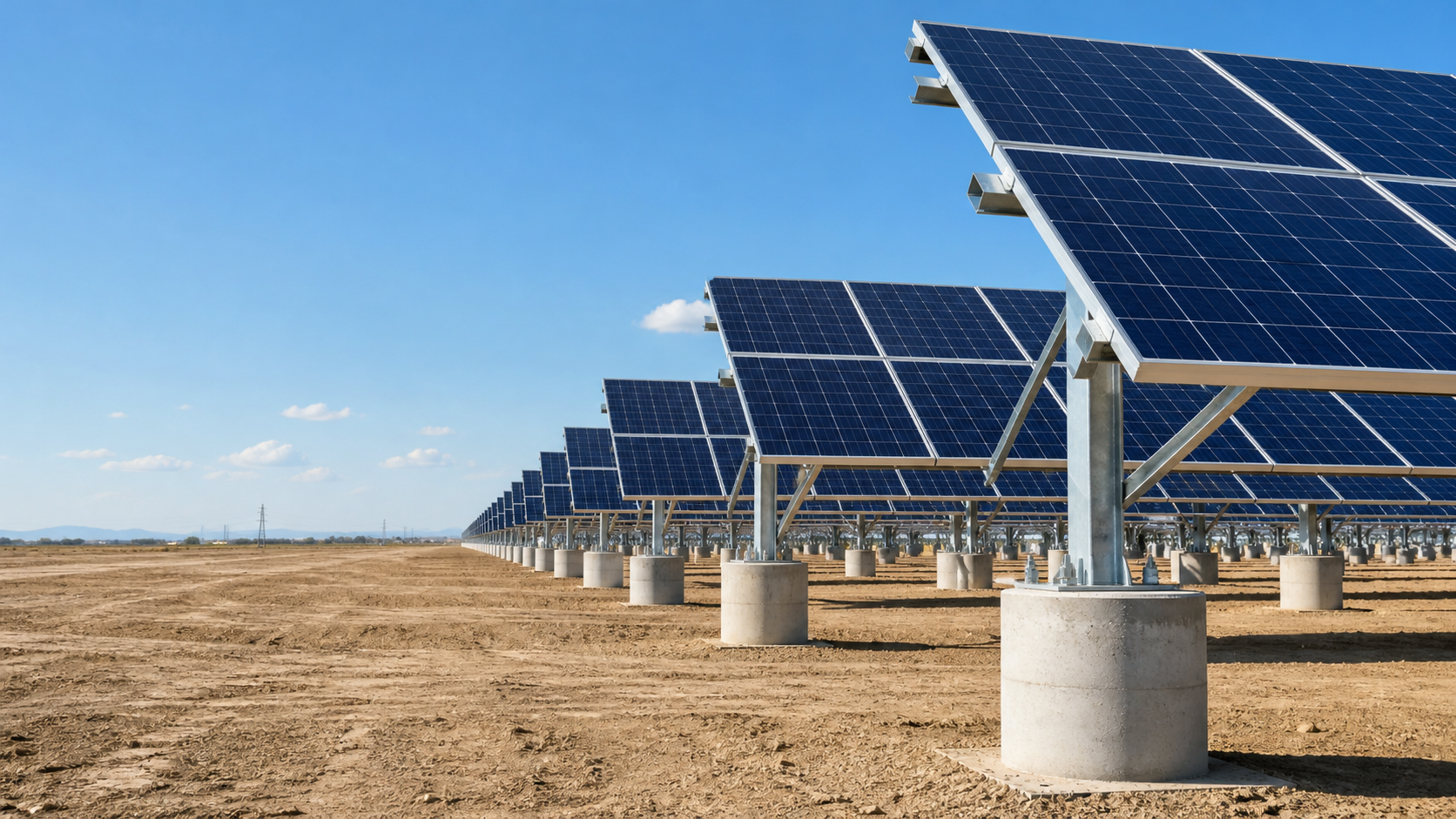

Concrete Foundation Support for Ground PV Projects
Concrete foundation mounting systems use concrete piers, concrete bases, or project-specific embedded anchors to support ground PV racking structures. This approach is often reviewed when driven piles or ground screws are not suitable, when local engineering practice prefers concrete foundations, or when the project needs stronger foundation stiffness under wind, soil, or code-driven conditions.
SolarMountX supports concrete foundation ground mounting projects with structural coordination around module layout, post spacing, anchor details, material selection, and installation requirements.

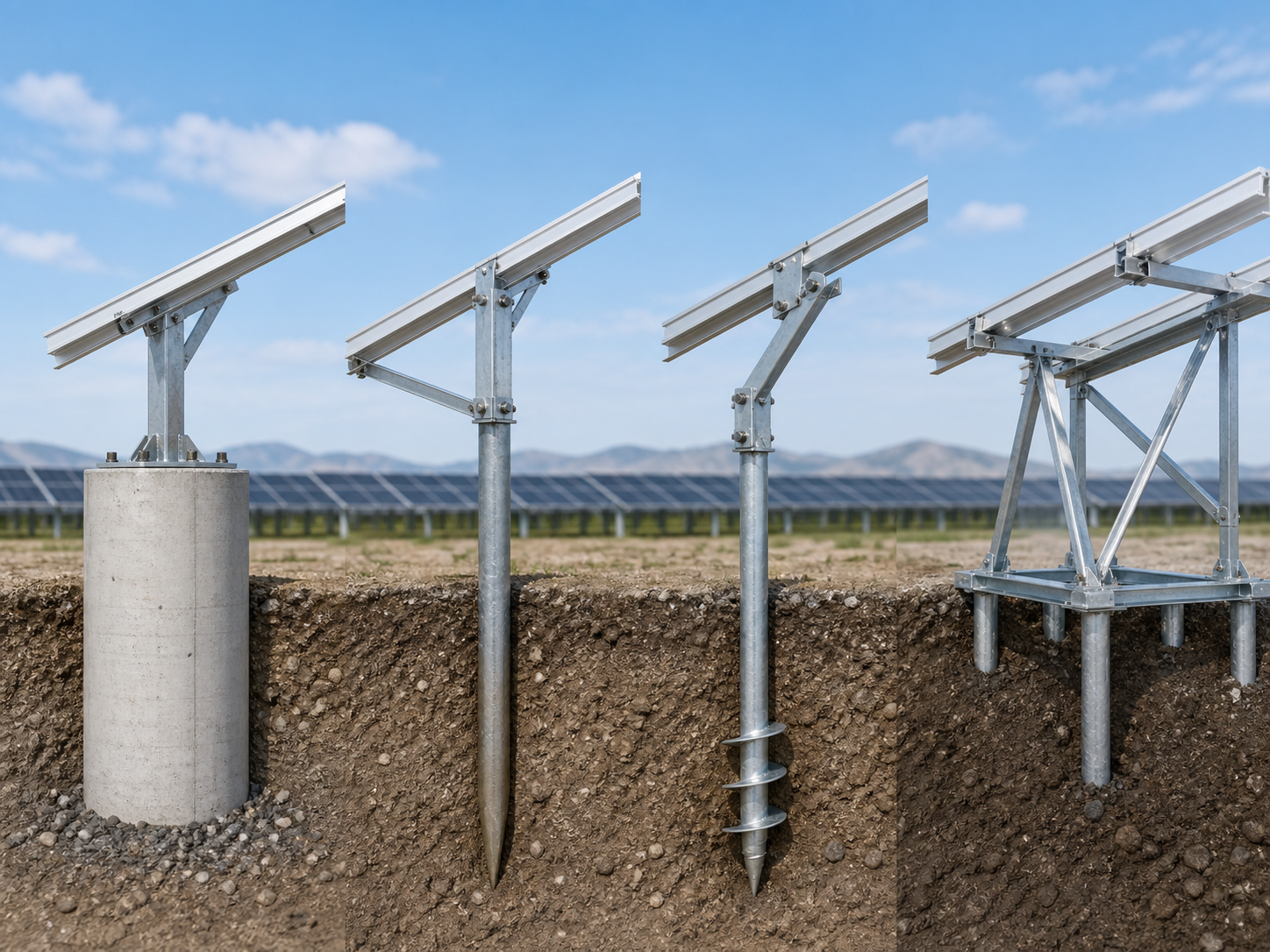

Alternative to Driven Piles
Useful when pile driving is restricted by soil, shallow rock, underground utilities, noise limits, or local practice.
Project-Specific Anchoring
Anchor bolt size, base plate, embedment, and pier dimensions should follow project engineering review.
Construction Planning Required
Excavation, reinforcement, concrete curing, alignment, and quality control should be planned before installation.
FOUNDATION DETAIL
Concrete Pier, Anchor Bolt, and Post Connection Logic

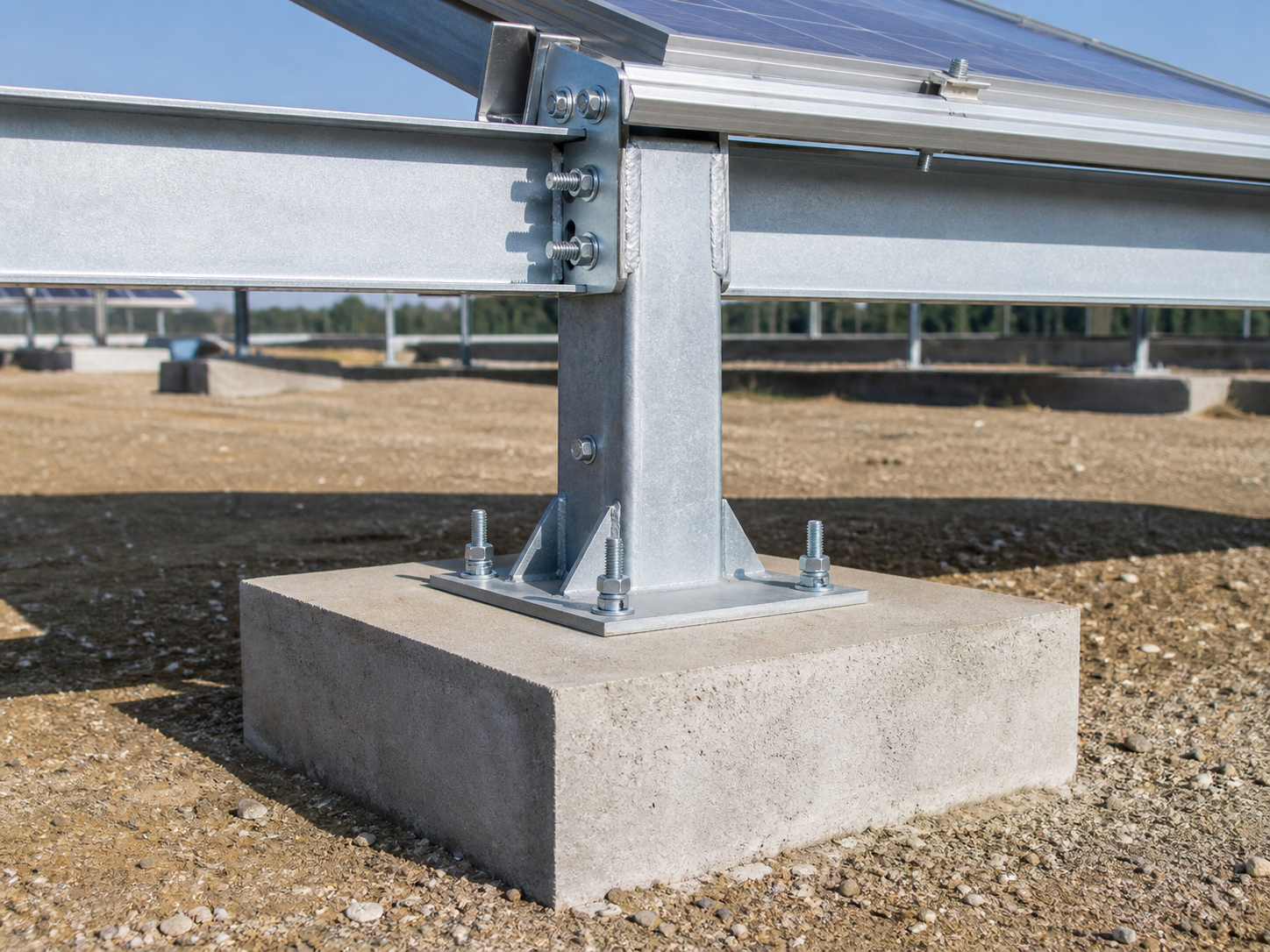

The concrete foundation transfers loads from the solar mounting structure into the ground through the concrete pier or base. Anchor bolts and base plates connect the steel post to the foundation, while beams, rails, clamps, and bracing form the upper PV support structure.
Before procurement, project teams should review concrete dimensions, reinforcement needs, anchor layout, post spacing, corrosion exposure, and installation tolerance.
| Component | Function |
|---|---|
| Concrete Pier / Concrete Base | Provides foundation mass and load transfer into the ground |
| Anchor Bolts | Connects the base plate and post to the concrete foundation |
| Base Plate | Distributes post loads into anchor bolts and concrete |
| Steel Post / Upright | Connects foundation with upper mounting structure |
| Beam / Support Frame | Carries rails and module loads |
| Rail | Supports PV module rows |
| Bracing | Improves lateral stability when required |
| Fasteners / Grounding Parts | Supports assembly, bonding, and field connection |
APPLICATIONS & SPECS
Concrete Foundation Mounting for Demanding Ground Conditions
Concrete foundation mounting systems are often reviewed for ground PV projects where soil, wind load, local code preference, or installation constraints require a stable concrete pier or concrete base solution.
High-Wind Ground PV Sites
Suitable when project review requires stronger foundation stiffness and stable post anchoring.
Poor Driving Conditions
Useful when pile driving or ground screw installation is limited by soil, rock, fill, or buried constraints.
Code-Driven Projects
Supports projects where local practice or engineering preference requires concrete piers or concrete bases.

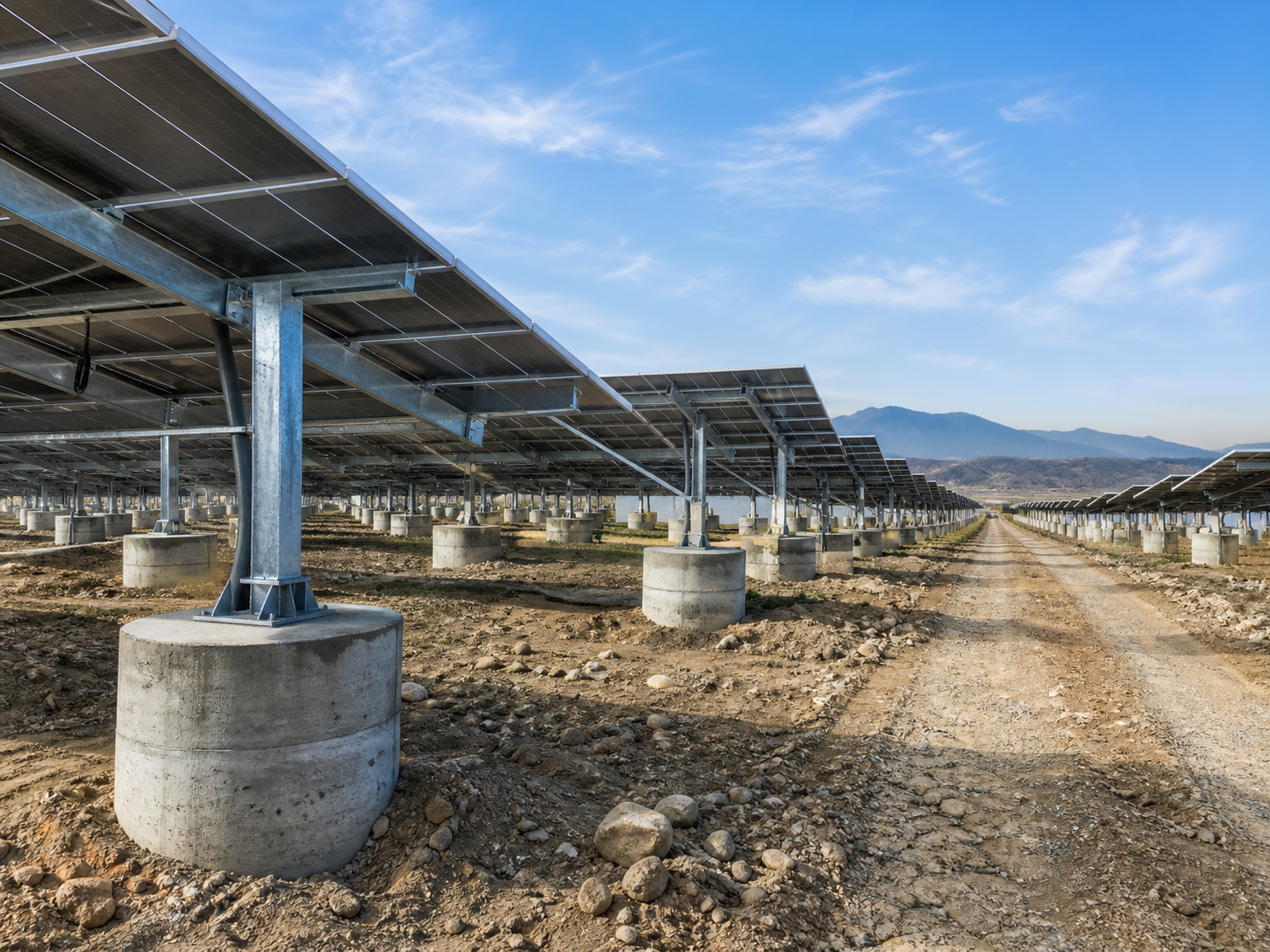

Commercial & Utility PV
Suitable for open-land projects that can plan excavation, curing, alignment, and installation sequence.
BASIC SPECIFICATIONS
| Product Type | Concrete foundation mounting system |
|---|---|
| Foundation Type | Concrete pier / concrete base / project-specific embedded anchor |
| Main Components | Concrete foundation, anchor bolts, base plates, posts, beams, rails, clamps, bracing, fasteners |
| Material Options | Galvanized steel, aluminum alloy, stainless steel fasteners |
| Surface Treatment | Hot-dip galvanizing / anodized aluminum according to component type |
| Module Orientation | Portrait or landscape |
| Application | Commercial and utility ground PV projects |
| Project Notes | Concrete dimensions, curing time, anchor layout, soil condition, wind load, snow load, and corrosion exposure should be reviewed before quotation |
GET PROJECT SUPPORT
Need A Concrete Foundation Mounting Solution?
Share your project location, PV layout, module size, soil condition, wind and snow load requirements, concrete foundation preference, and required documents. SolarMountX can help review a suitable concrete foundation mounting structure for your commercial or utility PV project.
✓
Concrete Pier Foundation
✓
Anchor-Bolt Connection
✓
Project-Based Review
