Suitable Soil Conditions
Works best when soil conditions support driven pile installation and consistent foundation performance.

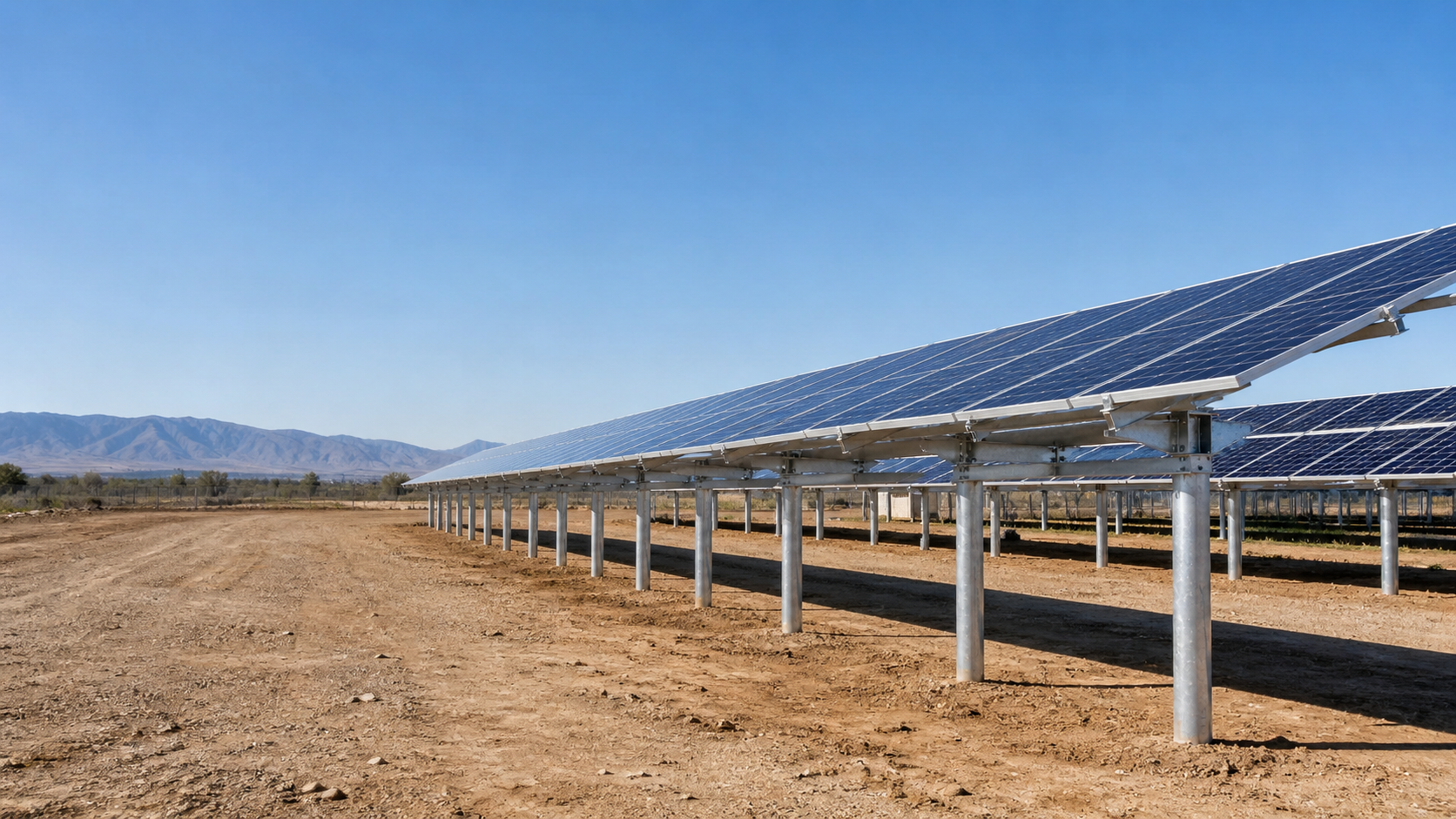

Driven Pile Solar Mounting Solution
Ramming Pile Ground Mount System
A driven pile solar mounting solution for commercial and utility PV projects that need stable foundation support, repeatable row installation, and project-based structural coordination.
- ✓Driven Pile Foundation
- ✓Utility & Commercial PV
- ✓Project-Based Review
System Overview
Driven Pile Ground Mounting for Large Solar Projects
Ramming pile ground mount systems use driven steel piles as foundation supports for open-land PV arrays. This approach is often selected for commercial and utility solar projects with suitable soil conditions, repeatable row layouts, and construction schedules that require faster foundation work. SolarMountX supports project-based review of PV layout, module size, pile spacing, load requirements, corrosion exposure, and upper racking configuration.
Repeatable Row Layout
Suitable for projects with regular array rows, clear access paths, and standardized installation sequences.

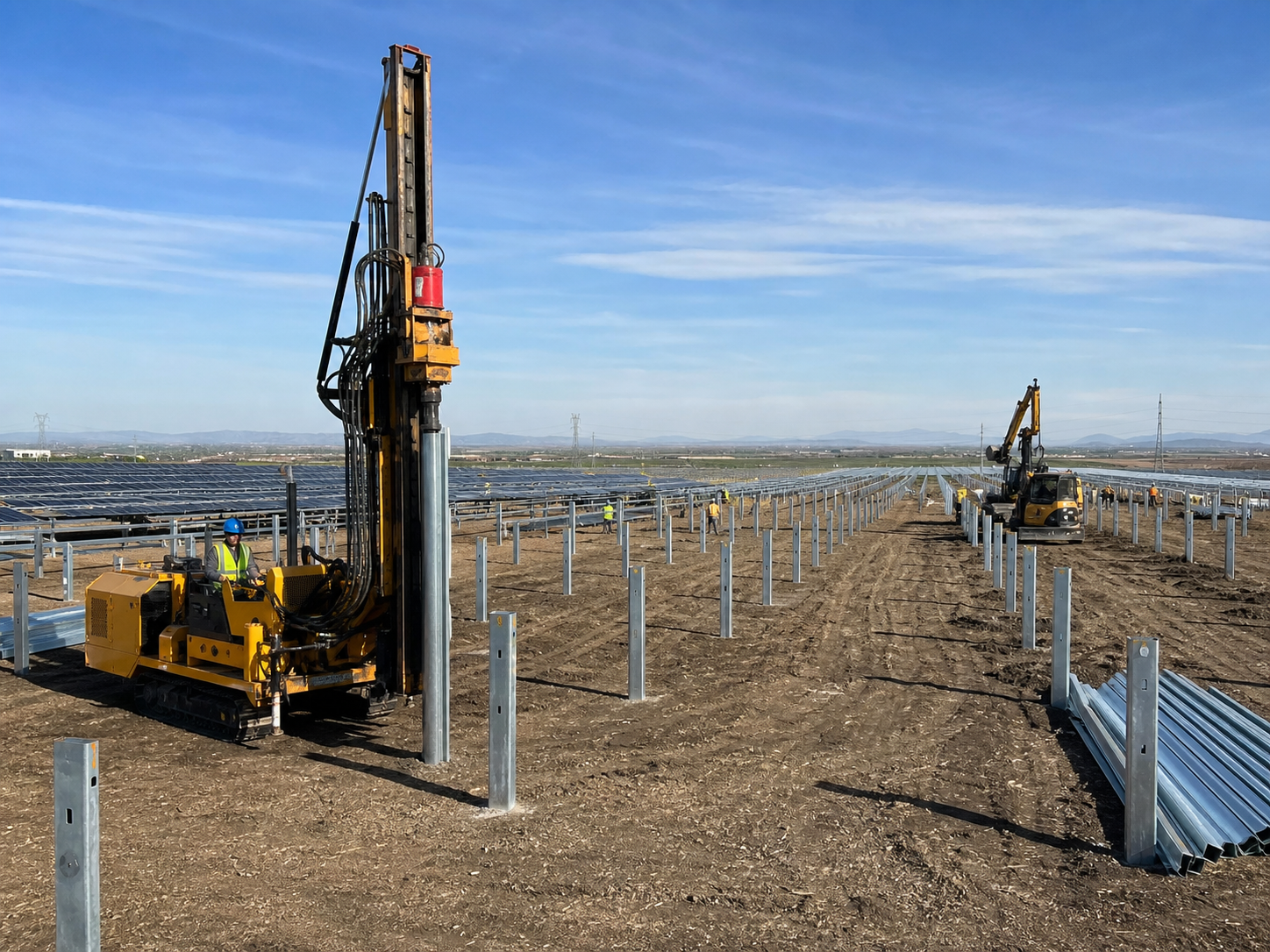

Faster Foundation Work
Reduces excavation and concrete curing requirements when compared with many concrete foundation approaches.
Project-Based Review
Pile depth, refusal criteria, corrosion exposure, and alignment tolerance should be confirmed before mass installation.
Structure & Foundation

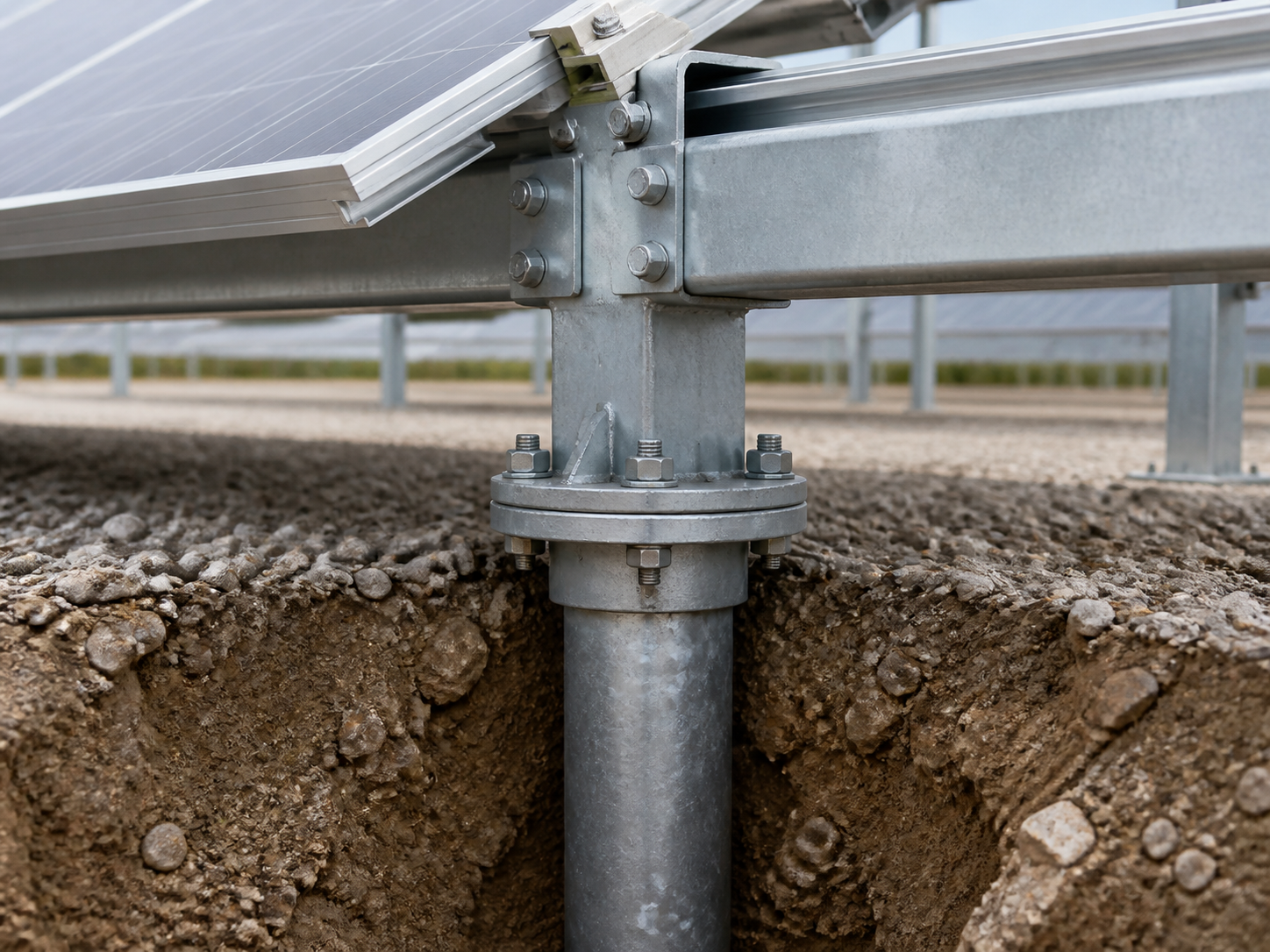

Ramming Pile Structure and Foundation Logic
The driven pile foundation transfers loads from the upper PV racking structure into suitable soil. Posts, beams, rails, clamps, bracing, and fasteners work together to support module rows and maintain structural stability under project-specific wind, snow, corrosion, and layout requirements.
| Driven Pile / Steel Pile | Transfers structural loads into suitable soil. |
|---|---|
| Post / Upright | Connects pile foundation with upper racking frame. |
| Beam / Support Frame | Carries rails and distributes module loads. |
| Rail | Supports PV module rows. |
| Mid Clamp / End Clamp | Secures framed PV modules. |
| Bracing | Improves lateral stability when required. |
| Fasteners / Grounding Parts | Supports assembly, bonding, and field connection. |
Applications & Specs
Built for Commercial and Utility Ground PV Projects
Utility-Scale Solar Farms
Suitable for large PV arrays with repeatable rows, stable layout, and field installation efficiency requirements.
Commercial Open-Land PV
Supports factories, logistics parks, campuses, and commercial land projects with open installation space.
Agricultural Solar Sites
Can support open agricultural land projects where foundation method and row access need early review.
Industrial & Remote Sites
Helps projects that need durable components, organized packing, and clear installation documents.
Basic Specifications
| Product Type | Ramming pile ground mount system |
|---|---|
| Foundation Type | Driven steel pile / ramming pile |
| Main Components | Piles, posts, beams, rails, clamps, bracing, fasteners |
| Material Options | Galvanized steel, aluminum alloy, stainless steel fasteners |
| Surface Treatment | Hot-dip galvanizing / anodized aluminum according to component type |
| Module Orientation | Portrait or landscape |
| Application | Commercial and utility ground PV projects |
| Project Notes | Soil condition, pile depth, wind load, snow load, corrosion exposure, and layout should be reviewed before quotation. |
GET PROJECT SUPPORT
Need A Ramming Pile Ground Mount Solution?
Share your project location, PV layout, module size, soil condition, wind and snow load requirements, and preferred foundation details. SolarMountX can help review a suitable ramming pile ground mount structure for your commercial or utility PV project.
✓
Driven Pile Foundation
✓
Project-Based Structure Review
✓
Commercial & Utility PV Support
